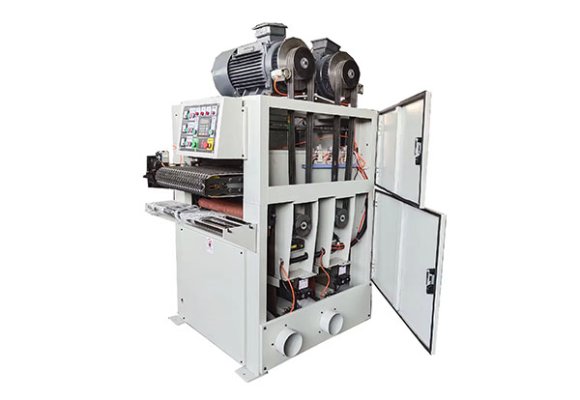

High-performance wood sanders

4(3)
Product Details

Place of Origin:Shandong, China

Condition:New

Machine Type:WOODWORKING

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Ordinary Product

Warranty of core components:1 Year

Core Components:Motor

Warranty:1 Year

Weight (KG):3200 KG

Key Selling Points:Easy to Operate

Showroom Location:None

Applicable Industries:MDF Production

Brand Name:chuangxinyuan

Power (kW):37

opening:80-150mm

hot platen open way:automatically

max working width:1300mm

size of sanding belt:1320*2020mm


Table parameters

Model

R-RP630

R-RP1000

R-RP1300

Max. working width

630mm

1000 mm

1300 mm

Working thickness

2.5-110 mm

2.5-110 mm

2.5-110 mm

No.1 sanding belt speed

20 m/s

20 m/s

20 m/s

No.2 sanding belt speed

18 m/s

18 m/s

18 m/s

Sanding belt size

650*1900 mm

1020*2020 mm

1320*2000 mm

Conveyor speed

6~38 m/min

6~38 m/min

6~38 m/min

Total power

11KW,7.5KW

15KW,11KW

37KW,22KW

Working pressure

0.55 MPA

0.55 MPA

0.55 MPA

Consumption of compressed air

1.2 m³/min

1.2 m³/min

1.2 m³/min

Overall dimension

1700*1100*2050mm

1700*1400*2050 mm

2750*2200*2050 mm

Net weight

1300kg

2000kg

3200kg
