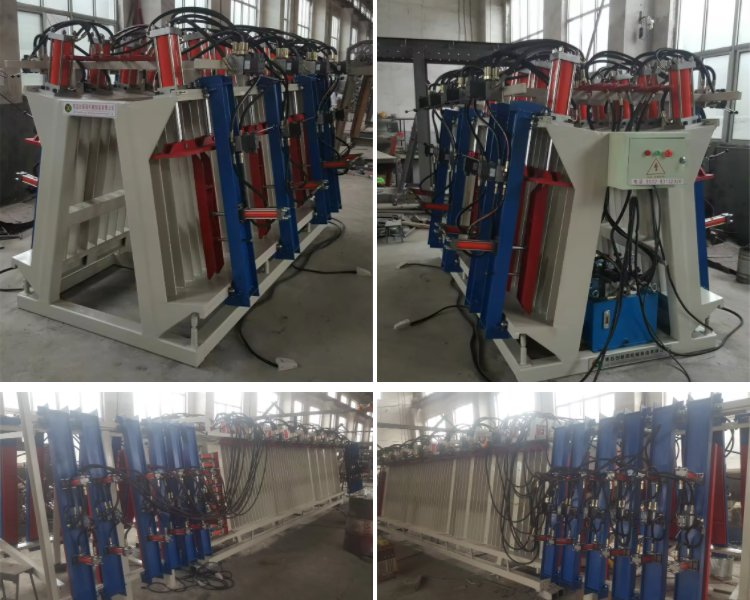

Sliding Door Opening Hydraulic Press Machine
Sliding door opening Hydraulic Press Machine Two Side Clamp Carrier machine
Voltage:380V50Hz Customised according to demand
1. More flexible in putting together small boards.
2. Low energy consumption
3. High efficiency.
4. continuous operation.
5. High flatness of finished boards;
6. Thick plate effect is better.
Product Details
Place of Origin:Shandong, China
Condition:New
Type:Sliding door opening
Weight (KG):5500 kg
Applicable Industries:Artificial board industry Furniture manufacturing
Warranty:1 Year
Key Selling Points:High Productivity
Use:woodworking machinery
Brand Name:Chuangxinyuan
Voltage:380V50Hz Customised according to demand
Dimension(L*W*H):3000*2200*2200
Power (kW):5.5
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Bearing, Motor, Pump
Working methods:Semi-auto
Table parameters
Model | MH2500 | MH4600 | MH5200 | MH6200 |
Max. Working Length | 2500mm | 4600mm | 5200mm | 6200mm |
Max. Working Width | 1300mm | 1300mm | 1300mm | 1300mm |
Max. Working Thickness | 150mm | 150mm | 150mm | 150mm |
Top Cylinder Diameter | 80mm | 80mm | 80mm | 80mm |
Top Cylinder Amount | 6pcs*2 | 12pcs*2 | 14pcs*2 | 16pcs*2 |
Side Cylinder Diameter | 40mm | 40mm | 40mm | 40mm |
Side Cylinder Amount | 6pcs*2 | 12pcs*2 | 14pcs*2 | 16pcs*2 |
Side Lifting Cylinder Diameter | 80mm | 80mm | 80mm | 80mm |
Side Lifting Cylinder Amount | 2pcs | 4pcs | 4pcs | 4pcs |
Motor Power | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
Pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa |
Overall Dimension(mm) | 3100*2300*2320 | 5400*2300*2320 | 6000*2300*2320 | 7000*2300*2320 |
Weight | 3800kgs | 6800kgs | 7200kgs | 9000kgs |
