Custom Wood Door Manufacturing

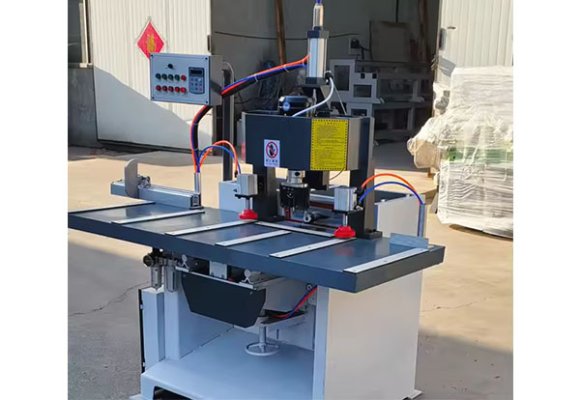

wood door lock hole hinge drilling machine drilling
Applicable Industries:Building Material Shops, Retail, Construction works
Product Details
Place of Origin:Shandong, China
Condition:New
Machine Type:drilling and slotting machine
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Warranty:1 Year
Weight (KG):800 KG
Key Selling Points:Easy to Operate
Showroom Location:None
Applicable Industries:Building Material Shops, Retail, Construction works
Brand Name:chuangxinyuan
Power (kW):4.1
Application:Wooden Door
Table parameters
Machine Body Specifications | 1900*1100*2000mm |
Spindle motor power | 4.1kw |
Maximum door size | 2600*1000*70mm |
Lead screw | TBI |
Bearings and housings | Taiwanese |
Working height | 750mm |
Spindle motor speed | 18000RP m/min |
Control system | motion control system |
Processing speed | 10-80m/min |
Electrical main parts | Schneider/CHINT |

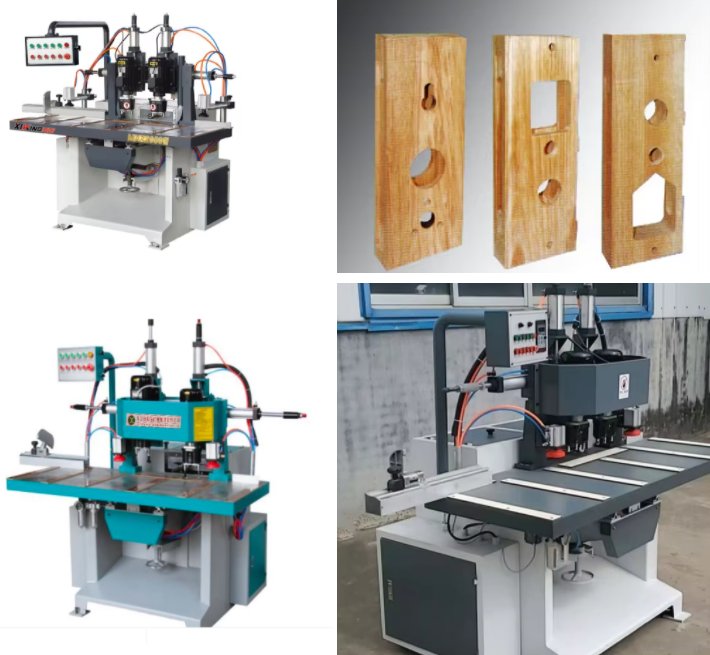

Main functions | Door leaf lock hole, dumpling chain, hardware installation hole, slot processing, hinge hole, door closer, etc. |
Product Evaluation:
